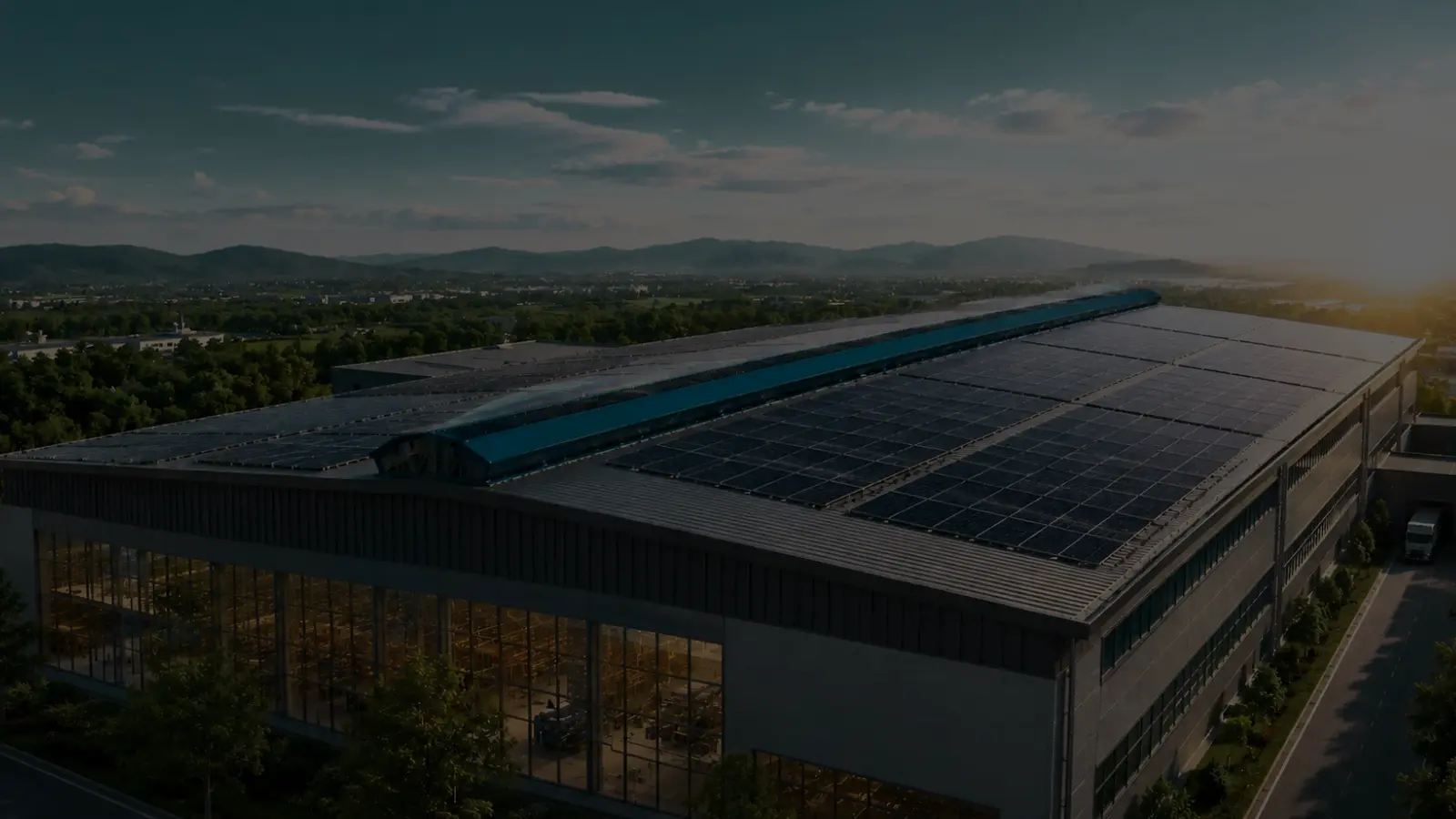

Air Out the Heat. Safety In.
Factory Ventilation
Systems
Complete Industrial Airflow & Fire Safety Ventilation
Geometric Steels supplies a complete range of industrial roof ventilation systems — from passive ridge vents (Hat Top, Monitor, Onion and Apex types) to active smoke extraction vents, metal louvers and electric-operated ventilation windows
Every product is engineered to maintain comfortable working temperatures, meet fire safety regulations and reduce energy consumption across factories, warehouses, pharmaceutical plants and commercial buildings.
4 Ridge Vent Types
Fire-Rated Smoke Vents
Electric-Operated Windows
4 Metal Louver Types
Auto-Sensor Activation
Exported to 7 Countries
Category 01
Industrial Roof Ventilation
Ridge Vent Systems
A roof ventilation ridge vent is installed along the apex of an industrial or commercial roof to continuously exhaust hot air, humidity and pollutants — harnessing the natural stack effect (warm air rises) without mechanical energy.
Installed at the highest point of the building, ridge vents create a permanent, maintenance-free ventilation path that significantly reduces internal temperatures, prevents condensation and improves air quality for workers and equipment below.
Geometric Steels manufactures four ridge vent profiles, each optimised for specific roof types, building widths and ventilation rate requirements
All are fabricated from high-quality corrosion-resistant materials and designed to perform in Indian industrial conditions.
| Product | Profile Type | Best Application | Ventilation Application |
|---|---|---|---|
| Hat Top Airflow Ridge Vent | Hat-profile cap over ridge opening | Any profile roof — universal fit | Continuous passive stack-effect exhaust |
| Monitor Type Airflow Ridge Vent | Raised monitor with louvred sides | Wide-span factories, large industrial sheds | Enhanced cross-ventilation via raised monitor |
| Onion Type Airflow Ridge Vent | Curved onion dome profile | Industrial buildings, factory roofs | Passive self-regulating ventilation |
| Apex Type Airflow Ridge Vent | Apex ridge line profile | Factory buildings, industrial roofs | Efficient ridge-line airflow exhaust |

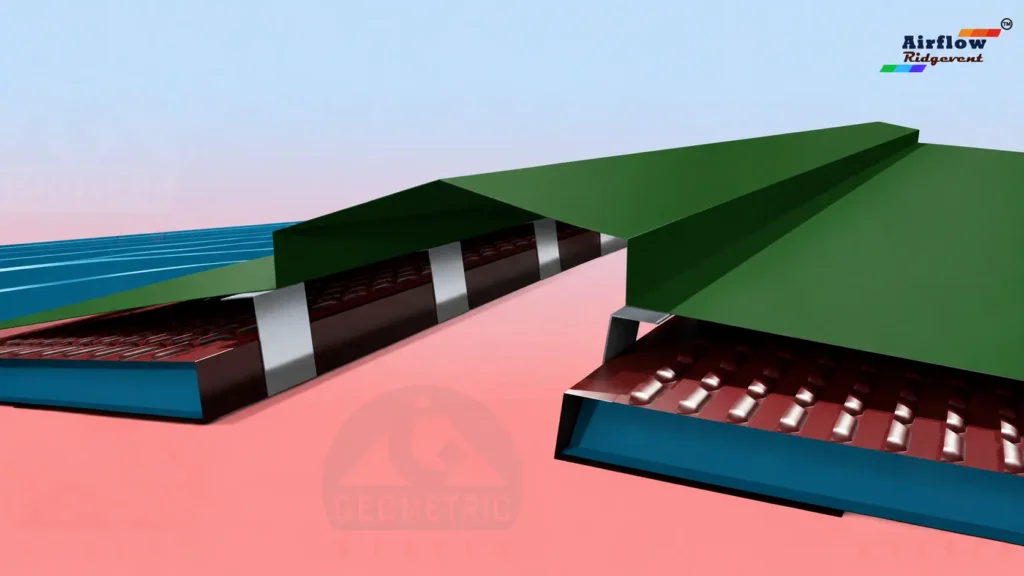

Universal Fit

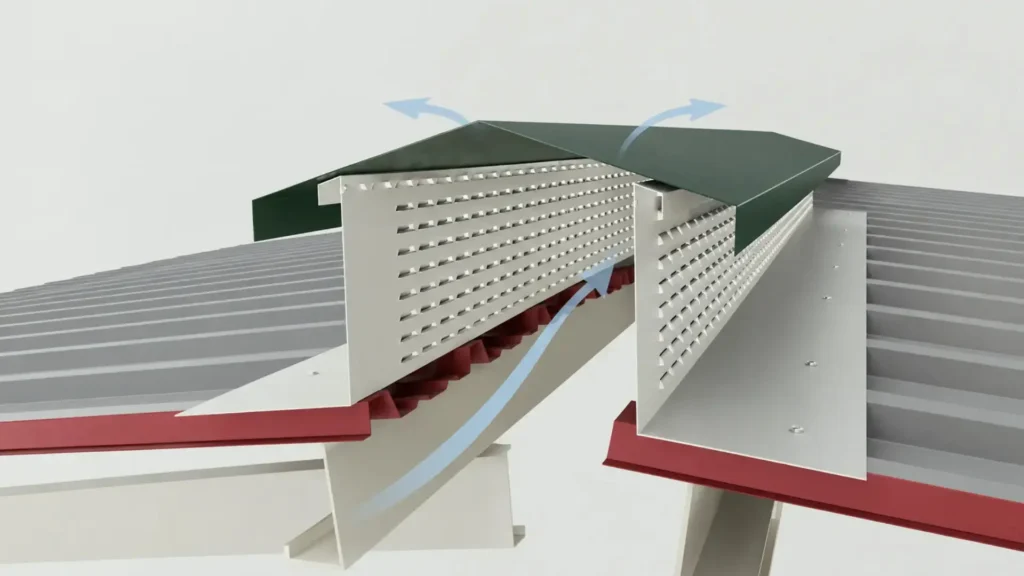

Fits any roof profile without modification. The hat-shaped cap sits over the ridge opening, protecting against rain ingress while allowing continuous hot-air exhaust along the full ridge length.
Large Span Preferred
Monitor Type Airflow Ridge Vent

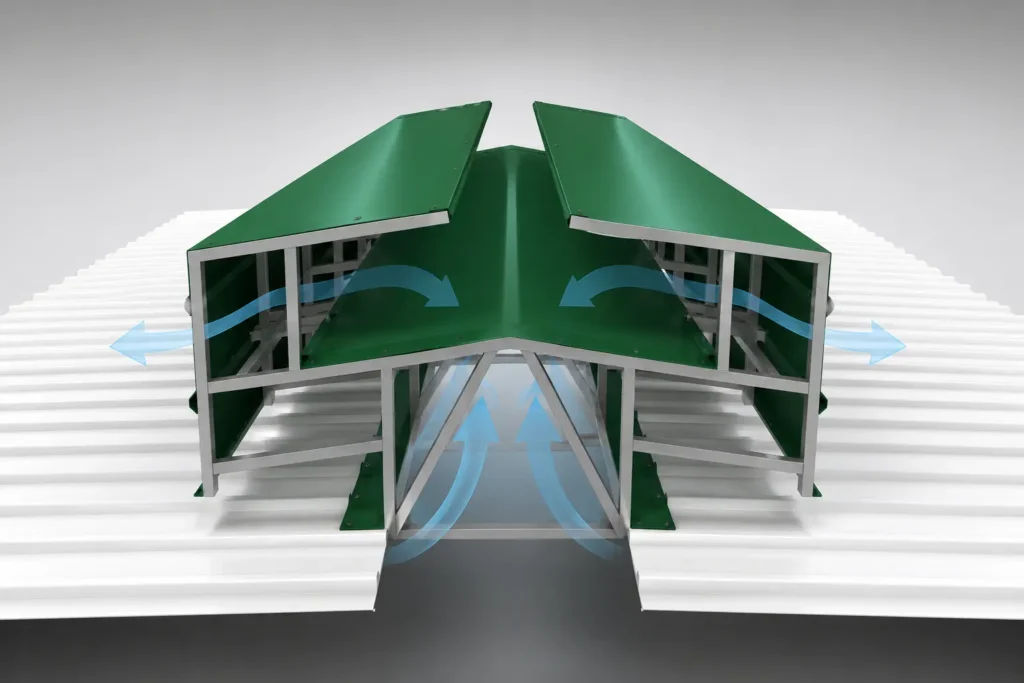

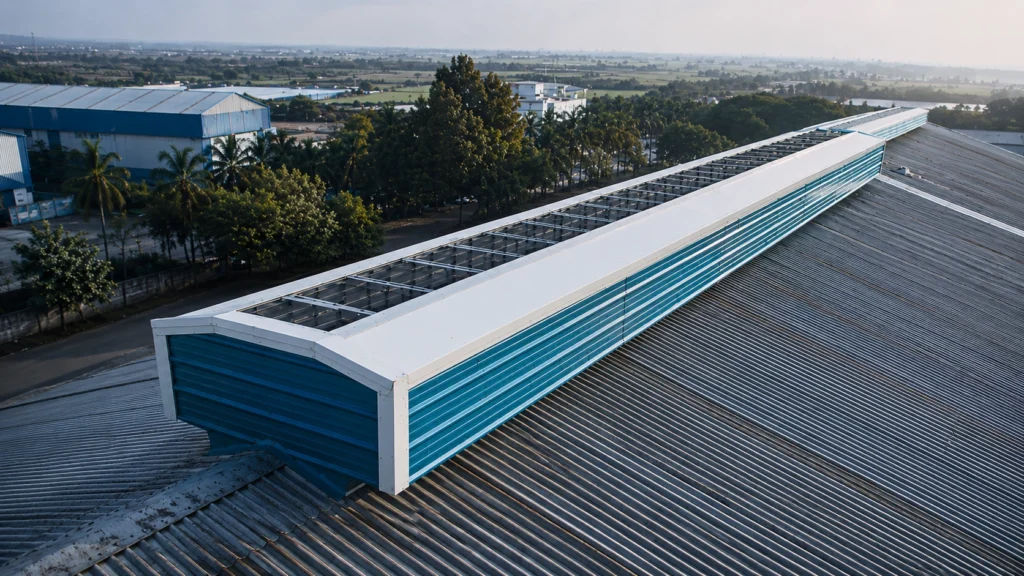

A raised monitor structure sits above the main roof level with louvred sides — allowing cross-ventilation through the elevated monitor zone in addition to ridge-level exhaust.
Self-Regulating
Onion Type Airflow Ridge Vent

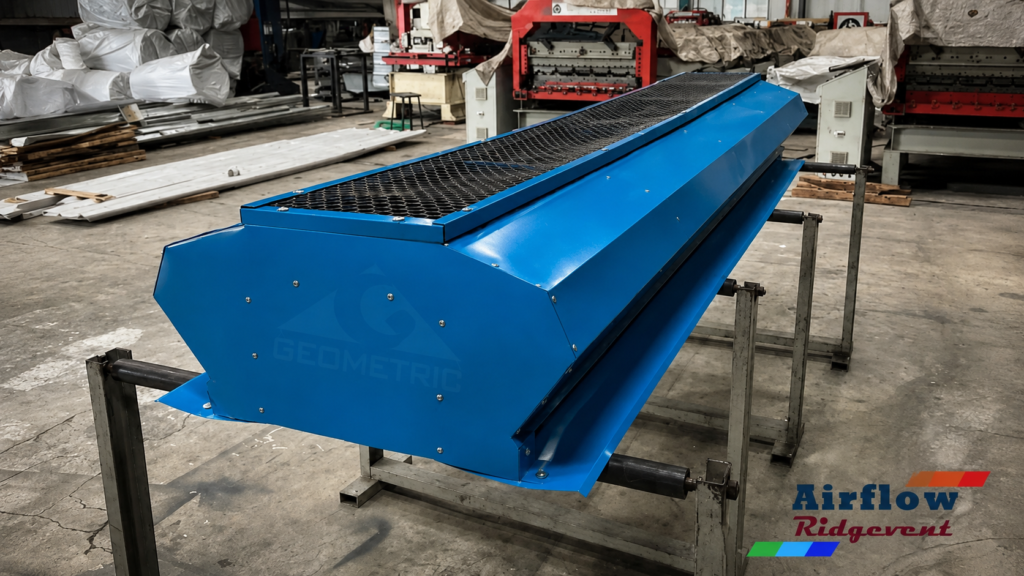

The distinctive curved onion dome profile naturally channels warm air upward through the vent opening regardless of wind direction.
Factory Buildings
Apex Type Airflow Ridge Vent

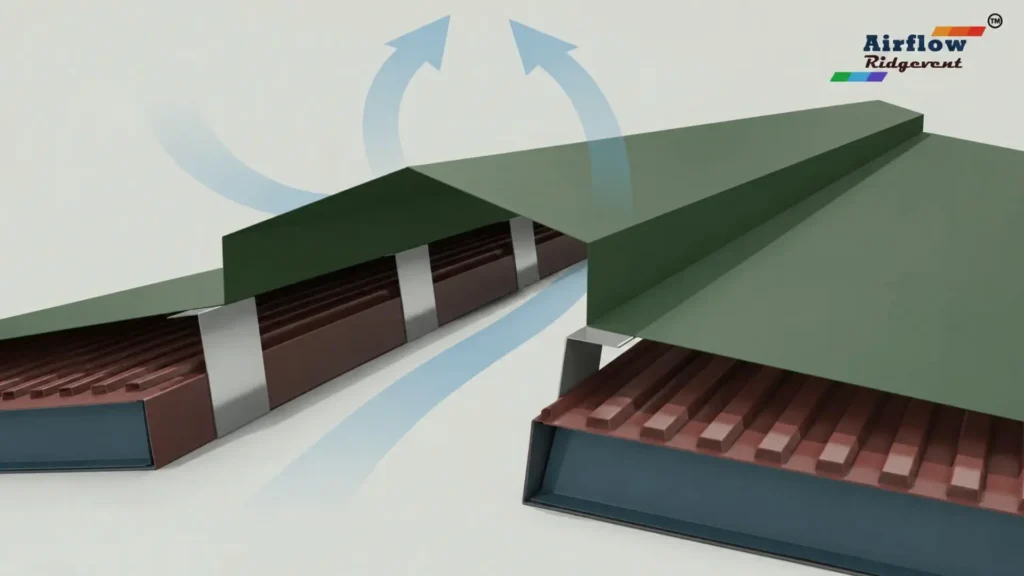

The Apex ridge vent provides efficient continuous ventilation along the full ridge line of factory and industrial building roofs.
Why Install a Roof Ventilation
Ridge Vent System?
Over 90% of fire-related fatalities are caused by smoke inhalation — not the fire itself. Smoke vents are not optional safety features — they are life-safety infrastructure that must function reliably at the moment of greatest need.
Geometric Steels smoke vents are engineered for precision, durability and guaranteed operation during emergencies

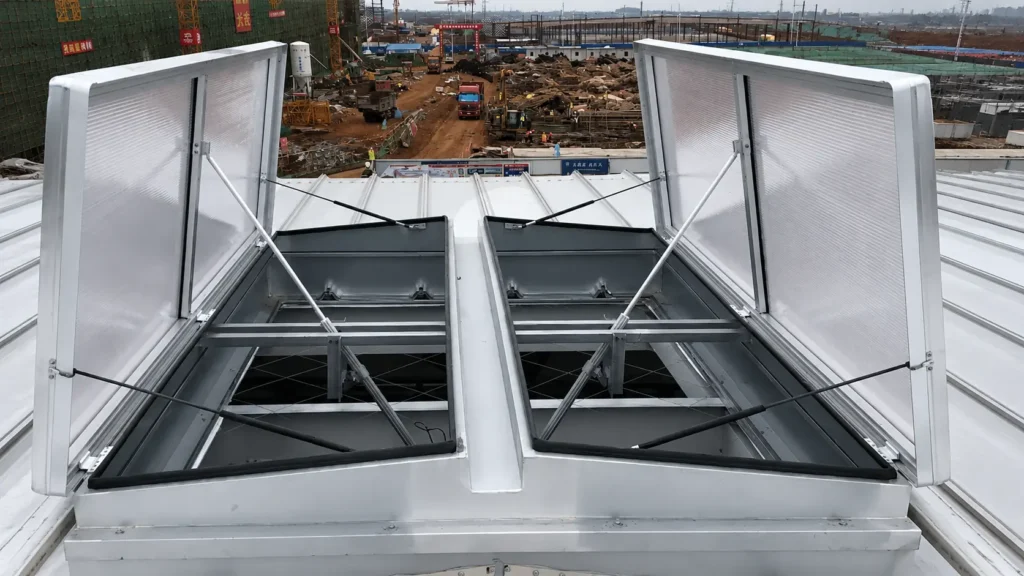

When a fire breaks out, smoke vents automatically open — allowing toxic smoke, hot gases and reduced-oxygen air to escape rapidly, keeping evacuation routes clear and improving visibility for both building occupants and responding firefighters.
The same vents also function as everyday natural ventilation units during normal building operation.
| Specification | Detail |
|---|---|
| Frame & Panel Material | Aluminium — lightweight, corrosion-resistant, dimensionally stable |
| Thermal Insulation | Optional double-layer thermal insulation for enhanced energy efficiency |
| Sealing | EPDM gaskets — complete weatherproof seal + efficient water drainage |
| Electric Actuation | Electric actuators up to 24V DC — auto or manual activation |
| Pneumatic Actuation | Pneumatic cylinders — independent of electrical supply |
| Emergency Mechanism | Mechanical interlock — guaranteed operation in extreme conditions |
| Ventilator Type | Double-flap — high extraction capacity for large volumes of hot air and smoke |
| Activation Triggers | Automatic (smoke sensor) or manual (fire alarm button) |
| Dual Function | Emergency smoke evacuation + everyday natural ventilation |
Category 02
Smoke ventilation system for
industrial infrastructure
Smoke Vent Engineering Features
Aluminium Construction:
Lightweight yet exceptionally durable — resists corrosion and distortion under high-heat emergency conditions
Double-Layer Thermal Insulation (Optional):
Enhances everyday energy efficiency while maintaining emergency performance and low maintenance requirements
EPDM Gasket Seals:
Provide a complete weatherproof seal during normal operation and ensure efficient water drainage around the vent perimeter
Dual Actuation Systems:
Electric (24V DC actuators) or pneumatic (cylinder-operated) — specify based on building power supply and fail-safe requirements
Mechanical Interlock:
Guarantees vent opening during emergencies even when electrical or pneumatic systems fail — essential life-safety redundancy
Double-Flap Ventilators:
Efficiently remove large volumes of hot air and smoke simultaneously — high extraction capacity for rapid smoke-layer clearance
From initial consultation to final installation and beyond, Geometric Steels provides complete project support. Our experienced
team ensures seamless execution, on-time delivery, and superior results that stand the test of time."
Key Safety & Operational Benefits
Enhanced Life Safety
Rapid smoke removal reduces risk of smoke inhalation injuries — keeping escape routes clear and breathable during evacuation.
Firefighter Access
Improved visibility and reduced smoke density enables firefighters to locate and suppress the fire source more quickly and safely.
Structural Protection
Rapid hot-gas venting reduces thermal damage to roof structure and building envelope, preserving structural integrity during and after a fire event.
Energy Efficiency
29.6 million sq.ft delivered, landmark projects including Samruddhi Mahamarg and Z-Morh Tunnel
Versatile Applications
In-house engineering team, complete BOQ services, structural calculations, and ongoing technical support
Category 03
Metal Louvers for Industrial
&
Commercial Buildings

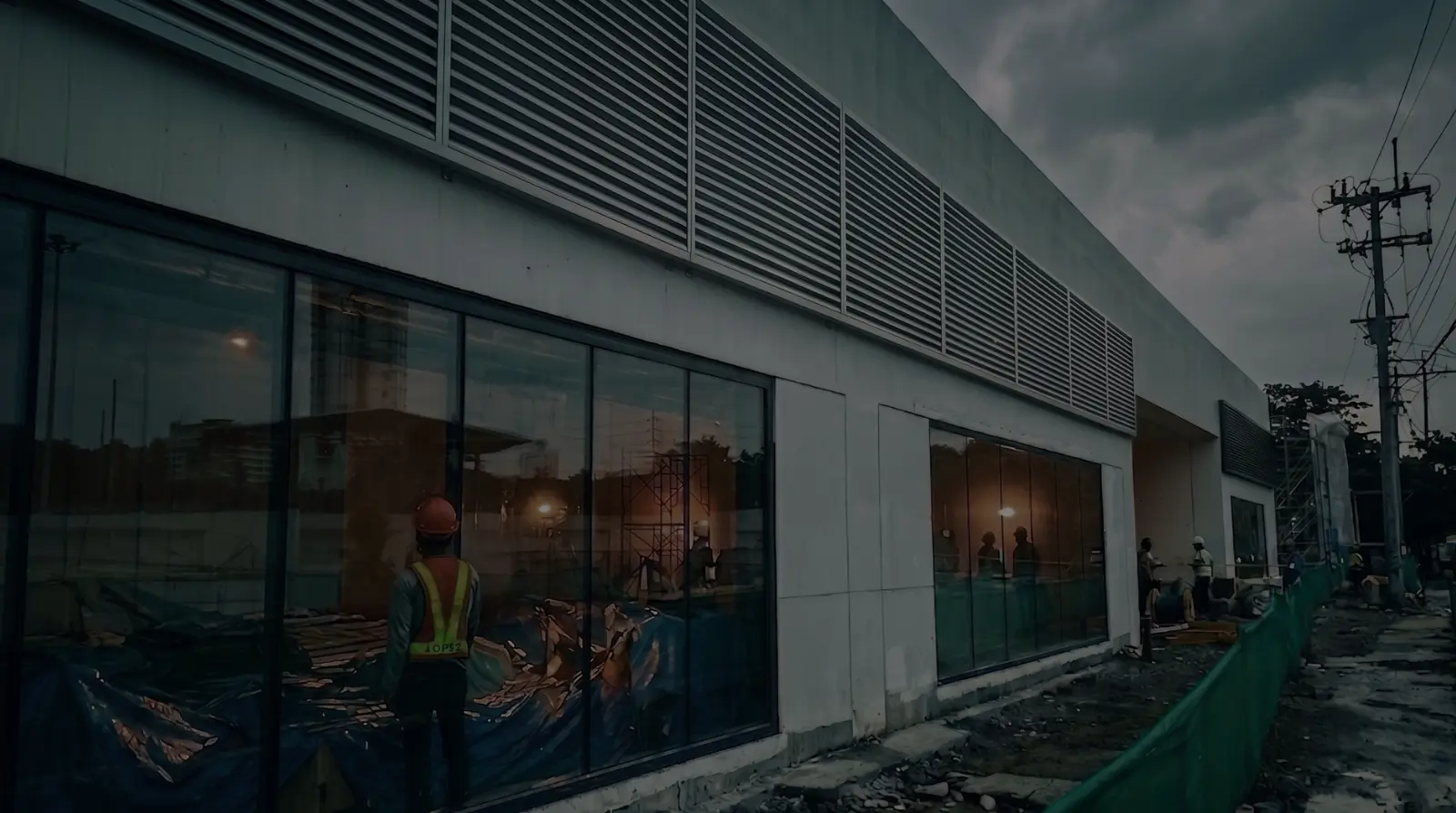

Metal louvers control airflow, exclude weather and enhance building aesthetics at wall, soffit and facade openings
Geometric Steels offers four types of metal louver — each engineered for specific performance requirements from heavy-duty industrial intake ventilation to architectural aluminium sunshade louvres for commercial facades.
| Product | Material | Primary Use | Key FeatureIndustrial / Intake Louvers |
|---|---|---|---|
| Industrial / Intake Louvers | Premium quality metal | Factory fresh-air intake, industrial ventilation openings | High free-area ratio for maximum airflow |
| Commercial / Sunshade Aluminium Louvers | Aluminium, powder-coated | Commercial buildings, office facades, sunshading | Durable, aesthetic, weather-resistant finis |
| Sand Trap Louvers | Premium quality metal | Dusty / desert environments, air intake filtration | Baffled design traps particulates before entering building |
| Round Edge Louvers | Metal (various) | Industrial & commercial general ventilation | Smooth round-edge profile for clean appearance |
Factory Intake

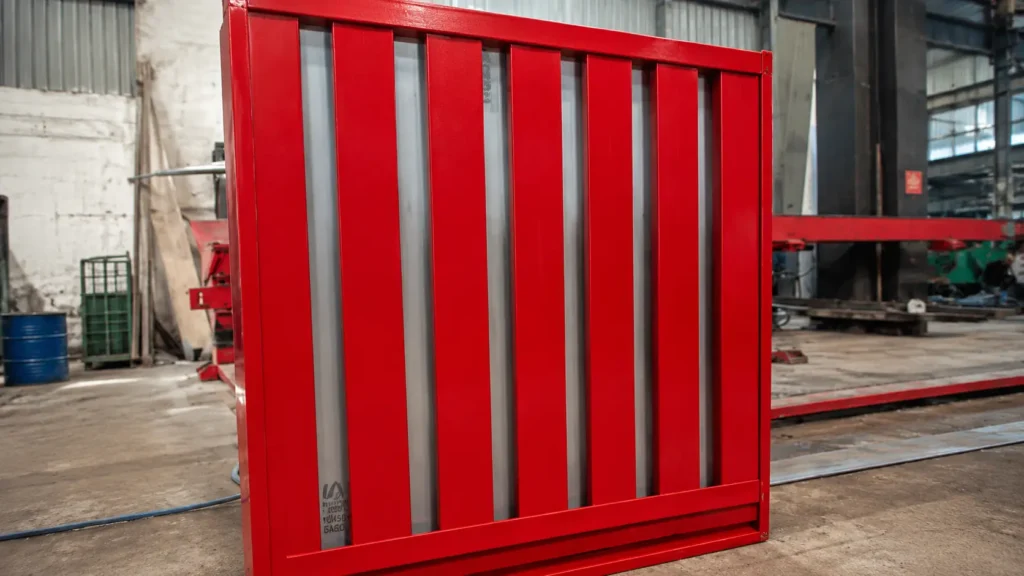

Industrial Louvers
High free-area ratio maximises airflow while heavy-gauge metal construction withstands industrial handling and harsh environmental exposure.
Commercial Facade
Commercial / Sunshade Aluminium Louvers
Aluminium powder-coated louvers deliver efficient ventilation alongside architectural sunshading
Air Filtration
Sand Trap Louvers
Baffled louvre design forces incoming air through direction changes that trap sand, dust and particulates — preventing contaminants from entering air-handling systems, switchrooms or sensitive industrial spaces.
General Ventilation

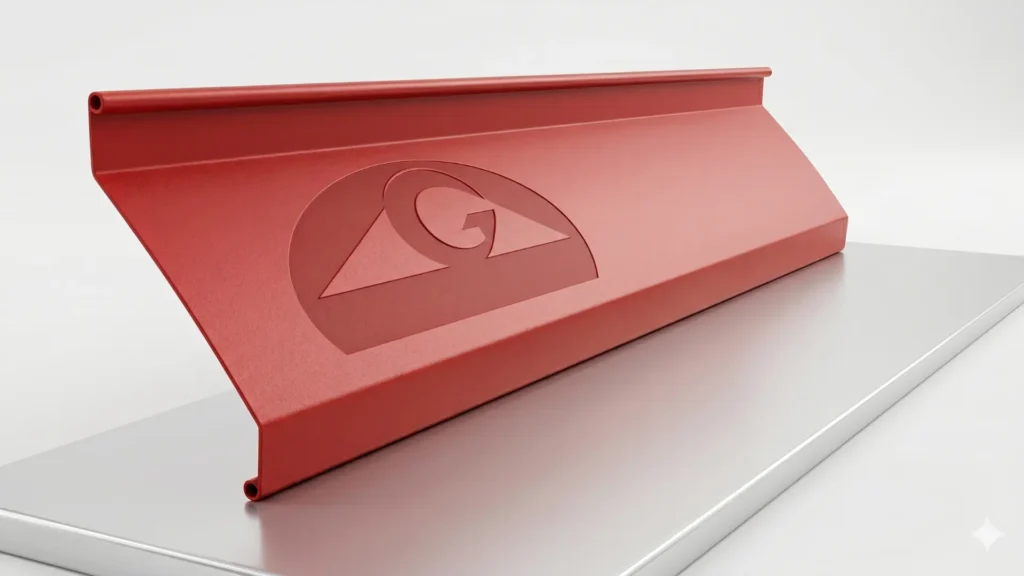

Round Edge Louvers
Round edge metal louvers combine effective ventilation performance with a smooth, clean-profile appearance — suitable for industrial and commercial applications where aesthetics and function are equally important.
Metal Louvers for Industrial
&
Commercial Buildings
Durable Construction
Premium quality metal resists harsh weather, UV, industrial chemicals and mechanical impact — delivering longevity and reliability across the full service life
Efficient Ventilation:
Optimised blade geometry maximises airflow per unit opening — reducing pressure drop and improving natural ventilation performance
Customisable Designs:
Available in a variety of sizes, blade spacings, styles and finishes — allowing a perfect architectural and performance fit for every project
Low Maintenance
Robust corrosion-resistant materials require minimal upkeep — no painting, no re-treatment and no replacement for extended periods
Aesthetic Appeal:
Sleek designs and a full range of powder-coat finishes enhance the visual appeal of any building facade
Customisable Designs:
Available in a variety of sizes, blade spacings, styles and finishes — allowing a perfect architectural and performance fit for every project
Why Leading Industries Trust Geometric Steels
18 Years of Innovation & Excellence
Feature
Product Range
Flashing Length
Manufacturing
Technical Support
Customization
Quality Certifications
Experience
Geographic Reach
Thermal Innovation
Sustainability
Geometric Steels
64 products – Complete solution
5 meters (industry-first)
In-house, ISO certified
Complete BOQ & site supervision
Made-to-order, 1–12m lengths
ISO, CE, IAF certified
20+ years, 62+ sugar factories
India + exports to 7 countries
METAhybrid® Best R Value
Absolutely
Industry Standard
Limited range
2.5 meters
Often outsourced
Limited support
Standard sizes only
Variable
Varies
Limited
Standard options
Variable
Frequently Asked Questions
Geometric Steels manufactures four types of industrial roof ventilation ridge vents: Hat Top Airflow Ridge Vent — universal fit for any roof profile; Monitor Type Airflow Ridge Vent — raised monitor with louvred sides for enhanced cross-ventilation in wide-span factories; Onion Type Airflow Ridge Vent — curved self-regulating passive ventilation for industrial buildings; and Apex Type Airflow Ridge Vent — efficient ridge-line ventilation for factory roof applications. All types operate on passive stack-effect principles — no electrical power or moving parts required.
A ridge vent provides continuous passive ventilation along the roof ridge during normal building operation — exhausting heat, humidity and contaminants via the natural stack effect. It is a fixed open vent with no active opening mechanism. A smoke vent is an emergency life-safety device that remains closed during normal building operation and opens automatically (or manually) only when a fire is detected — rapidly exhausting toxic smoke and hot gases to protect life and assist firefighters. Geometric Steels supplies both systems, which are designed to work together as part of a coordinated roof ventilation and fire safety strategy.
Smoke vents are available with two actuation systems: Electric actuation — operating on electric actuators up to 24V DC, triggered automatically by a smoke sensor or manually via a fire alarm button; and Pneumatic actuation — using cylinders that operate independently of the building electrical supply, providing resilience in power-failure scenarios. Both systems incorporate a mechanical interlock that guarantees vent opening under emergency conditions even in extreme heat or if the primary actuation system fails.
Four metal louver types are available: Industrial/Intake Louvers — high free-area ventilation for factory fresh-air intake; Commercial/Sunshade Aluminium Louvers — powder-coated aluminium for commercial building facades, sunshading and architectural ventilation; Sand Trap Louvers — baffled design for air intake filtration in dusty or desert environments, preventing particulate ingress into air-handling systems and sensitive spaces; Round Edge Louvers — smooth-profile metal louvers for both industrial and commercial general ventilation applications. All types are available in customisable sizes, blade spacings and finishes.
Electric-operated windows activate automatically when a smoke sensor detects fire, or can be manually opened immediately via a fire alarm button — without requiring personnel to physically reach and open each window. By creating rapid air intake paths at wall level, they drive a pressure differential that forces smoke and hot gas upward and out through roof-level smoke vents — significantly accelerating smoke clearance. The windows are available in above-hanging and below-hanging configurations with chain or hydraulic actuators, and glass or polycarbonate panels. In daily operation, they also serve as natural ventilation intake openings — working with ridge vents above to create a continuous cross-ventilation airflow path.
A fully coordinated industrial ventilation and fire safety system uses all three components together: Ridge vents at roof apex provide continuous passive exhaust ventilation during normal operation; Electric windows at wall level provide intake air paths — both for everyday cross-ventilation and as emergency intake during fire events; Smoke vents are the emergency high-capacity exhaust devices at roof level that open automatically on fire detection, working with the open electric windows below to create a rapid, high-volume smoke extraction airflow. Geometric Steels supplies all three components — allowing a coordinated, documented and code-compliant industrial ventilation and fire safety system from a single source.
