Industrial Ridge Ventilation System
APEX Ridgevent
Custom on-site assembled ridge ventilation for factory buildings — engineered for large-span industrial roofs with throat sizes from 900mm to 3000mm. Pre-fabricated welded steel frames, integrated rainwater drainage, and material versatility for any industrial application.
900mm
Solar Panel Roof Compatible
3000
Solar Panel Roof Compatible
mm
Standard throat size configurations
100
Frame structures primary + secondary
100
Moving parts — fully passive
100
01 — Product Overview
Apex Ridgevent: Custom Industrial Ventilation for Factories

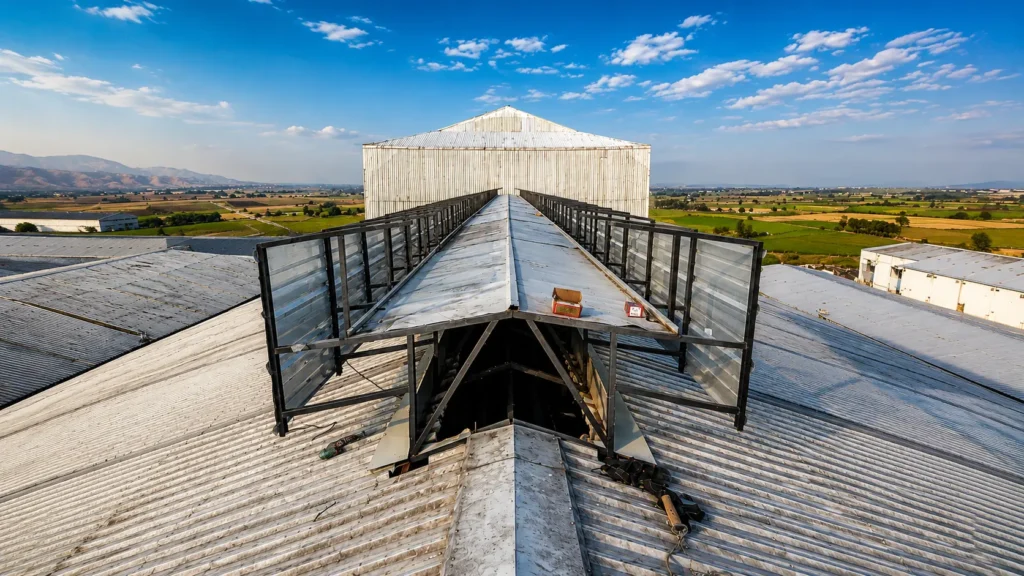

The Apex Ridgevent is a custom on-site assembled ridge ventilation system designed specifically for large-span industrial and commercial factory roofs. Spanning the entire length of the roof ridge, it allows hot air to escape the building space while facilitating the continuous inflow of fresh air through the inlet or opening vent.
Constructed from frames manufactured in the Geometric Steels factory and installed on-site, the Apex Ridgevent consists of two frame structures — primary and secondary — pre-assembled and welded together to form a solid, stable framework. This two-stage process ensures superior fit, sealing, and structural integrity compared to standard ridge vent solutions.
This two-stage process ensures superior fit, sealing, and structural integrity compared to standard ridge vent solutions.
Its innovative design supports enhanced indoor air quality by reducing heat build-up and promoting continuous airflow — while robust construction, effective rainwater drainage, and material versatility make it a sustainable, cost-effective investment for factories and large-scale facilities.
On-Site Assembled · Pre-Fabricated Frames · Geometric Steels
Pre-Fabricated Welded Frame System
The main frame is securely welded with a base steel component at the ridgevent throat, integrating seamlessly into the roof structure for superior sealing and a reduced likelihood of leaks.
Colour-Coated Sideboard
with Edge Flashing
The sideboard is constructed from colour-coated pressed profile sheet with edge flashing, providing enhanced strength and a clean architectural finish.
Integrated Flow Guide Plate
An integrated flow guide plate directs rainwater onto the roof surface, preventing water infiltration and ensuring reliable rainwater management throughout the building's service life.
Spans Entire Roof Ridge Length
The Apex Ridgevent spans the complete length of the roof ridge, delivering continuous and uniform ventilation for the entire factory floor area below.
02 — Throat Size Range
Seven Standard Throat Configurations
Available in seven standard throat sizes from 900mm to 3000mm. Custom sizes can be configured on-site to
meet specific project requirements.
| Throat (C) | (W) | (H) | (D) | Purline Dist. (A) |
|---|---|---|---|---|
| 900mm | 2200 mm | 1130 mm | 1200 mm | 1000 mm |
| 1000mm | 2445 mm | 1255 mm | 1300 mm | 1100 mm |
| 14200mm | 2860mm | 1500 mm | 1500 mm | 1300 mm |
| 1500mm | 3665mm | 1880 mm | 1800 mm | 1600 mm |
| 2000mm | 4890mm | 2510 mm | 2300 mm | 2100 mm |
| 2500mm | 5950mm | 3130 mm | 2800 mm | 2600mm |
| 3000mm | 7150mm | 3765 mm | 3300 mm | 3100mm |
03 — Construction System
How the Apex Ridgevent is Built?
A two-stage manufacturing and assembly process ensures superior structural integrity, precise roof fit, and a reduced likelihood of water leaks compared to standard ridge vents.
1. Factory Pre-Fabrication of Frames
Two frame structures — primary and secondary — are pre-assembled in the Geometric Steels factory to ensure quality control, ease of delivery, and faster on-site installation.
2. Primary and Secondary Frames Welded Together
The primary and secondary structures are welded together to form a solid and stable framework. The main frame is securely welded with a base steel component at the ridgevent throat, integrating seamlessly into the roof structure.
3. Sideboard Cladding with Edge Flashing
The sideboard is constructed from colour-coated pressed profile sheet with edge flashing, providing enhanced structural strength and a finished aesthetic appearance on the roof ridge.
4. Cladding Material Selection
Depending on installation requirements, the ridge can incorporate either colour-coated metal profile sheets or translucent polycarbonate sheets — offering flexibility for light, thermal, and aesthetic requirements.
5. Flow Guide Plate Installation for Rainwater
An integrated flow guide plate is fitted to direct rainwater onto the roof surface. This leak-proof solution prevents water infiltration and ensures reliable rainwater management throughout the vent's service life.
6. On-Site Assembly and Installation
The complete Apex Ridgevent is assembled on-site, designed to fit precisely on the roof ridge. Its custom fit ensures superior sealing compared to pre-manufactured fixed-size alternatives.
04 — Material Options
Two Cladding Material Options
The Apex Ridgevent accommodates two cladding options depending on your ventilation, daylighting, and aesthetic requirements.
Standard Cladding Option
Colour-Coated Metal
Profile Sheets
The sideboard is constructed from colour-coated pressed profile sheet with edge flashing, offering enhanced structural strength and long-term weather resistance.
Provides full opacity for maximum thermal insulation
Colour-coated for durability and aesthetic integration
Edge flashing for enhanced structural strength
Long-term weather resistance for industrial environments
Natural Daylighting Option
Translucent Polycarbonate Sheets
Translucent polycarbonate sheet cladding allows natural daylight to enter the factory space through the ridgevent, reducing artificial lighting requirements during daytime hours.
Allows natural daylight into the factory floor area
Reduces dependence on artificial lighting — energy savings
UV-resistant polycarbonate for long-term performance
Maintains ventilation performance while adding daylighting
05 — Benefits
Built for Industrial Performance
The Apex Ridgevent combines custom-fit engineering, versatile materials, and passive ventilation principles into a single high-performance system for factory buildings.
Custom-Fit for Any Factory Roof
On-site assembly ensures a precise fit on the roof ridge with superior sealing and minimal leak risk — tailored to the exact dimensions and profile of your building.
Continuous Natural Airflow
Spans the entire roof ridge length to allow hot air to escape continuously, while fresh air enters through the inlet vent — maintaining optimal indoor air quality across the full factory floor.
Integrated Rainwater Drainage
The flow guide plate directs rainwater onto the roof surface, preventing water infiltration and ensuring reliable leak-proof rainwater management throughout the service life.
Welded Structural Framework
Primary and secondary frames are welded together to form a solid, stable framework — ensuring long-term structural integrity in heavy industrial environments.
Accommodates All Roof Profiles
The Apex Ridgevent's ability to accommodate various roof profiles establishes it as a versatile solution for diverse industrial and commercial building setups.
Energy Efficiency
Reduces reliance on mechanical ventilation and air conditioning systems, lowering operational energy costs and contributing to sustainable building practices.
Why Leading Industries Trust Geometric Steels
18 Years of Innovation & Excellence
Feature
Product Range
Flashing Length
Manufacturing
Technical Support
Customization
Quality Certifications
Experience
Geographic Reach
Thermal Innovation
Sustainability
Geometric Steels
64 products – Complete solution
5 meters (industry-first)
In-house, ISO certified
Complete BOQ & site supervision
Made-to-order, 1–12m lengths
ISO, CE, IAF certified
20+ years, 62+ sugar factories
India + exports to 7 countries
METAhybrid® Best R Value
Absolutely
Industry Standard
Limited range
2.5 meters
Often outsourced
Limited support
Standard sizes only
Variable
Varies
Limited
Standard options
Variable
Frequently Asked Questions
Common questions about the Apex Ridgevent for factory and industrial building ventilation.
The Apex Ridgevent is a custom on-site assembled ventilation system for factory and industrial building roofs. It consists of pre-fabricated welded steel frames installed at the roof ridge, spanning its entire length to allow hot air to escape while fresh air enters. Available in throat sizes from 900mm to 3000mm.
The Apex Ridgevent is available in seven standard throat sizes: 900mm, 1000mm, 1200mm, 1500mm, 2000mm, 2500mm, and 3000mm. Each size has corresponding width, height, depth, and purlin distance dimensions. Custom configurations are also available via on-site assembly.
The Apex Ridgevent consists of two frame structures pre-assembled in the Geometric Steels factory, then installed on-site. The primary and secondary structures are welded together to form a solid, stable framework. The main frame is welded with a base steel component at the ridgevent throat, integrating seamlessly into the roof structure.
The Apex Ridgevent can be clad with colour-coated metal profile sheets or translucent polycarbonate sheets. The sideboard is constructed from colour-coated pressed profile sheet with edge flashing. Polycarbonate cladding allows natural daylighting for additional energy efficiency.
The Apex Ridgevent is equipped with a flow guide plate that directs rainwater onto the roof surface. This leak-proof solution prevents water infiltration and ensures reliable rainwater management throughout the ridgevent’s service life.
Yes. The Apex Ridgevent’s custom on-site assembly and its ability to accommodate various roof profiles make it a versatile solution for diverse industrial and commercial setups — from standard trapezoidal profiles to custom structural configurations.
