Thermal Insulated Metal Roofing Sheets
Cool Inside.
Tough Outside
Single & Double Skin · Factory-Assembled · Solar-Ready
METAhybrid® Thermal Insulated Metal Roofing Sheets deliver superior heat reflection, noise reduction and energy efficiency in a single pre-assembled panel — eliminating separate insulation layers, vapour barriers and liner sheets
Available in Single Skin and Double Skin configurations with insulation cores from 6mm to 50mm, METAhybrid® panels are the preferred roofing solution for industrial sheds, cold storage, poultry farms, food processing plants and commercial buildings across India.
6mm – 50mm
Insulation Core
Solar Panel Compatible
550 MPa High-Tensile Steel
1060mm Cover Width
Non-Toxic ·
Non-Carcinogenic
METAhybrid® Thermal Insulated Roofing & Cladding Sheets
Conventional metal roofing without insulation creates heat-trap buildings — uncomfortable to work in, expensive to cool and damaging to temperature-sensitive products.
METAhybrid® thermal insulated metal roofing sheets solve this at the roofing layer itself: every panel combines a profiled metal outer facing, a high-performance insulation intermediate layer and either an aluminium foil radiant barrier (Single Skin) or a second metal liner sheet (Double Skin) — all factory-assembled and delivered ready to install.
The result is a roofing system that blocks radiant heat, reduces sound transmission, prevents condensation and maintains comfortable indoor temperatures year-round — without additional insulation works on site.
The result is a roofing system that blocks radiant heat, reduces sound transmission, prevents condensation and maintains comfortable indoor temperatures year-round — without additional insulation works on site.
With a wide 1060mm cover width, custom lengths up to 6000mm and a choice of PPGI, GL, PPGL or aluminium facings, METAhybrid® panels adapt to virtually any industrial, agricultural or commercial roofing requirement.
| Parameter | Double Skin | Single Skin |
|---|---|---|
| Bottom Layer | Full metal liner sheet (PPGI/GL/PPGL/AL) | Aluminium foil radiant barrier |
| Insulation Range | 19mm · 24mm · 30mm · 50mm | 6mm · 12mm · 19mm · 24mm |
| Max Core Thickness | 50mm | 24mm |
| Interior Finish | Off-white plain liner (professional) | Reflective aluminium foil |
| Structural Strength | Enhanced (dual metal skin) | Standard |
| Thermal Performance | Superior (thicker core available) | Good |
| Best Applications | Cold storage, food processing, warehouses, chemical industries | Poultry, agriculture, pharma, schools, commercial |
| Cover Width | 1060mm | 1060mm |
| Solar Compatible | Yes | Yes |
| Pre-Assembled | Yes | Yes |
Why Specify METAhybrid® Thermal Insulated Roofing Sheets
1. Lightweight & Easy Installation
Pre-assembled panels require only simple tools — no separate insulation laying, no vapour barrier installation. Reduces site labour time and cost significantly
2. Superior Energy
Efficiency
Minimises heat transfer and reflects radiant heat — reducing cooling loads, lowering energy bills and cutting the building's carbon footprint throughout its service life.
3. Noise & Rain Sound Reduction
The insulation intermediate layer effectively blocks rain impact noise and ambient environmental sound — creating a quieter, more comfortable indoor working environment.
4. Durability & Corrosion Resistance
550 MPa high-tensile steel provides robust structural integrity. Moisture prevention properties enhance longevity by reducing water vapour permeability and corrosion risk.
5. Moisture
& Weatherproof
The sealed multi-layer construction prevents condensation and moisture build-up within the panel, delivering a watertight, weatherproof roofing envelope in all climates.
6. Eco-Friendly
& Hygienic
Constructed from non-toxic, non-carcinogenic insulation materials. The sealed profile does not support nesting of insects, birds or rodents — ideal for food and pharma environments.
7. Solar Panel
Compatible
550 MPa high-tensile steel provides robust structural integrity. Moisture prevention properties enhance longevity by reducing water vapour permeability and corrosion risk.
8. Moisture
& Weatherproof
The robust 550 MPa profiled top layer supports rooftop solar panel mounting systems without additional structural reinforcement — enhancing building sustainability.
All insulated sandwich roof panels are manufactured to EN 14509 with factory-controlled lamination ensuring
consistent bond strength and dimensional accuracy.
Introducing A Geometric steels Exclusive
METAhybrid® Thermal Insulated Roofing Sheet
(Industry-Leading R-Value 4.2")
Advanced Thermal Insulation Technology
Key Features:
✓ R-Value - Superior thermal resistance
✓ Energy Cost Reduction (Proven)
✓ ISO & CE Certified
✓ Approved by Top Indian Architects
✓ Multi-layer composite construction
✓ Corrosion-resistant coating
✓ Available in custom colors & finishes
Real Results from Real Projects
Key Benefits:
1. Reduce HVAC load by 35-40%
2. Maintain consistent interior temperature
3. Lower carbon footprint & ESG compliance
4. Minimal maintenance - 20+ year lifespan
5. Fast installation - reduce project timelines
Single Skin Thermal Insulated
Roofing Sheets
Single Skin METAhybrid® panels offer an innovative and cost-effective solution for environments requiring controlled temperature and noise levels.
The multi-layer construction provides superior thermal insulation in a lightweight, easy-to-install format — ideal for manufacturing units, agricultural setups, poultry farms and commercial buildings.
Excellent moisture resistance guarantees long-lasting performance across all Indian climatic conditions.

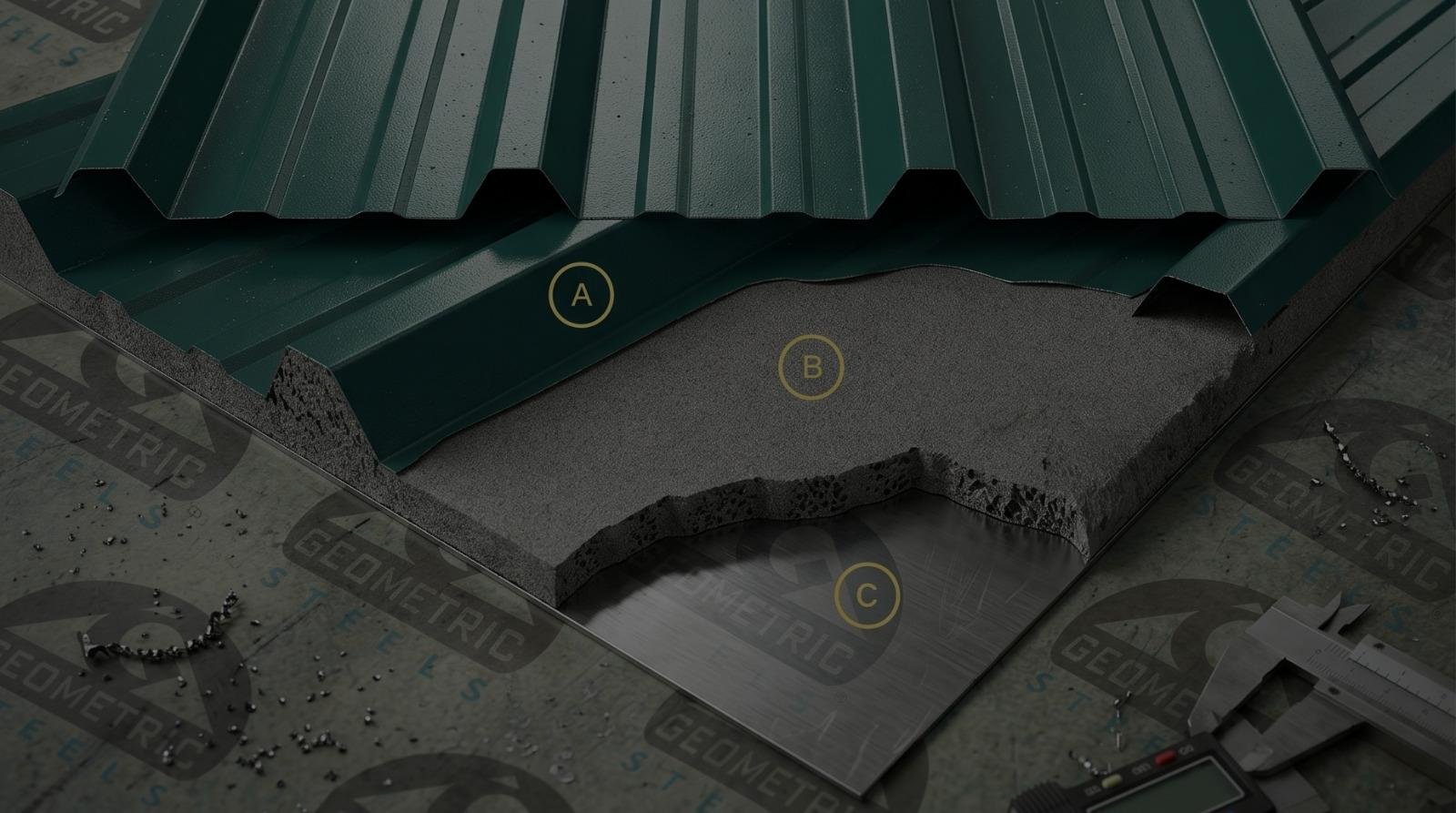

1. Top Layer — Profiled Metal Sheet
PPGI / GL / PPGL / AL — provides structural strength, weatherproofing and aesthetic finish
2. Intermediate Layer — Insulation
Special insulation material in 6mm · 12mm · 19mm · 24mm thickness options
3. Bottom Layer — Aluminium Foil Radiant Barrier
Reflects radiant heat inward during winter / outward during summer; provides vapour barrier
Key Advantages — Single Skin
1. Lightweight & Easy to Handle: Simple tools required — reduces labour time and cost
2. Time-Saving: No additional base support or insulation works needed beyond standard installation
3. Heat Blockage: Reflects radiant heat to keep interiors significantly cooler
4. Noise Reduction: Effectively blocks rain impact and environmental noise
5. Moisture Resistant: Prevents condensation and moisture build-up at the roof level
6. Eco-Friendly: Non-toxic, non-carcinogenic insulation materials throughout
7. Corrosion Resistant: Reduced water vapour permeability enhances long-term durability
8. Wide Cover Width: 1060mm cover reduces lap loss and lowers per-square-metre material cost
9. Hygienic: Sealed construction does not support nesting of insects, birds or rodents
10. Solar Ready: 550 MPa profile supports rooftop solar mounting systems
Double Skin Thermal Insulated
Roofing Sheets
Double Skin METAhybrid® panels replace the foil bottom layer with a full profiled metal liner sheet — delivering enhanced structural strength, superior sound insulation and a clean, professional off-white interior finish.
The thicker insulation core options (up to 50mm) make Double Skin panels the preferred solution for warehouses, cold storage, food processing plants, chemical industries and any application requiring maximum thermal performance and a finished interior appearance.
1. Top Layer — Profiled Metal Sheet
PPGI / GL / PPGL / AL — superior weather resistance, strength and exterior finish
2. Intermediate Layer — Insulation
High-performance insulation in 19mm · 24mm · 30mm · 50mm thickness options
3. Bottom Layer — Aluminium Foil Radiant Barrier
PPGI / GL / PPGL / AL — off-white plain liner providing additional strength and clean interior finish
Key Advantages — Double Skin
1. Pre-Assembled Panels: Factory-assembled construction saves installation time and reduces on-site labour costs
2. Superior Noise Insulation: Dual metal skins plus thick insulation core act as a highly effective barrier against rain, traffic and industrial noise
3. Maximum Heat Insulation: Up to 50mm insulation core minimises heat transfer — ideal for cold storage, food processing and temperature-controlled environments
4. Clean Interior Finish: Off-white plain liner panel provides an attractive, professional interior ceiling appearance
5. Enhanced Structural Strength: Second metal skin adds additional rigidity and load-bearing capacity versus Single Skin configuration
6. Clean Interior Finish: Off-white plain liner panel provides an attractive, professional interior ceiling appearance
7. Low Maintenance: Durable and long-lasting with minimal upkeep required across the full service life
8. Energy Efficiency: Minimises heat transfer in both directions — reducing HVAC loads, energy costs and carbon emissions
9. Weatherproof: Sealed watertight construction provides absolute protection against rain, wind and moisture ingress
10. Solar Panel Ready: Robust 550 MPa profile is rated for rooftop solar panel mounting systems
11. High Combined Performance: Combines the strength of profiled metal with the versatility of a high-performance insulation core for excellent all-round thermal and acoustic results
Where METAhybrid® Thermal Insulated
Roofing Sheets Are Specified
Environmental Control Sheds
Large-span logistics and distribution facilities requiring fast envelope installation.
Pharma Industries
Refrigerated warehouses and food-grade facilities with stringent U-value requirements.
Manufacturing Units
Retail parks, data centres and office buildings targeting BREEAM or LEED ratings.
Animal Houses
Farm stores, livestock housing and controlled-environment horticulture.
Agriculture Farms
Hygienic PU foam insulated roofing with smooth-finish facings for food-safe environments.
Poultry Farms
Mineral wool panels meeting fire regulation requirements for public-sector buildings.
Textile Industries
Farm stores, livestock housing and controlled-environment horticulture.
Commercial Buildings
Hygienic PU foam insulated roofing with smooth-finish facings for food-safe environments.
Construction Site Offices
Mineral wool panels meeting fire regulation requirements for public-sector buildings.
Warehouses
Farm stores, livestock housing and controlled-environment horticulture.
Cold Storage Facilities
Hygienic PU foam insulated roofing with smooth-finish facings for food-safe environments.
Fruit Ripening Chambers
Mineral wool panels meeting fire regulation requirements for public-sector buildings.
Site Office Buildings
Farm stores, livestock housing and controlled-environment horticulture.
Chemical Industries
Hygienic PU foam insulated roofing with smooth-finish facings for food-safe environments.
Food & Beverage Processing
Mineral wool panels meeting fire regulation requirements for public-sector buildings.
FMCG Manufacturing
Farm stores, livestock housing and controlled-environment horticulture.
Pharmaceutical Plants
Hygienic PU foam insulated roofing with smooth-finish facings for food-safe environments.
Industrial Sheds
Mineral wool panels meeting fire regulation requirements for public-sector buildings.
How Thermal Insulated Metal
Roofing Sheets Work
Why Standard Metal Roofing Fails Without Insulation
Bare metal roofing sheets conduct heat directly into the building — raising internal temperatures by 8–15°C above ambient in Indian summer conditions
Without insulation, HVAC systems must work significantly harder — increasing energy consumption and operating costs year-round
Condensation forms on the underside of cold metal sheets in winter — leading to dripping, corrosion and product damage below
Rain impact noise on thin metal sheets creates uncomfortable working conditions in manufacturing and commercial environments
Retrofitting insulation to an existing metal roof requires additional structure, separate installation teams and significantly more site time
Retrofitting insulation to an existing metal roof requires additional structure, separate installation teams and significantly more site time
How METAhybrid® Multi-Layer Construction Solves All of This
Radiant Heat Reflection: The profiled outer metal layer reflects solar radiant heat before it enters the insulation core — reducing heat gain at source
Conductive Heat Resistance: The insulation intermediate layer (6–50mm) resists the transfer of residual heat through the roof — maintaining a stable internal temperature
Radiant Barrier at Bottom: The aluminium foil (Single Skin) reflects any remaining radiant heat back upward — creating a third line of thermal defence
Condensation Prevention: The sealed multi-layer construction prevents moisture-laden air from reaching cold surfaces — eliminating condensation drip entirely
Acoustic Dampening: The insulation layer absorbs rain impact energy and dampens airborne sound transmission — reducing interior noise levels measurably
Single-Step Installation: Pre-assembly at factory means the entire insulation system is installed in a single roofing operation — no separate insulation teams or additional visits
Energy Efficiency & Sustainability Benefits
Reduces cooling energy consumption in air-conditioned buildings by lowering the heat gain through the roof plane — the largest single source of solar heat gain in industrial buildings
Lowers the building's carbon footprint through reduced HVAC energy demand across the full operating lifetime of the roof
Maintains comfortable indoor temperatures in non-air-conditioned buildings during peak summer — reducing heat stress and improving productivity
Compatible with rooftop solar panel installation on the robust 550 MPa profiled top layer — enabling on-site renewable energy generation
Constructed from non-toxic, non-carcinogenic materials — meeting environmental and occupational health requirements for food, pharma and education sector buildings
Why Leading Industries Trust Geometric Steels
18 Years of Innovation & Excellence
Feature
Product Range
Flashing Length
Manufacturing
Technical Support
Customization
Quality Certifications
Experience
Geographic Reach
Thermal Innovation
Sustainability
Geometric Steels
64 products – Complete solution
5 meters (industry-first)
In-house, ISO certified
Complete BOQ & site supervision
Made-to-order, 1–12m lengths
ISO, CE, IAF certified
17+ years, 52 sugar factories
India + exports to 7 countries
METAhybrid® R-4.2
100% recyclable materials
Industry Standard
Limited range
2.5 meters
Often outsourced
Limited support
Standard sizes only
Variable
Varies
Limited
Standard options
Variable
Frequently Asked Questions
Single Skin panels use a profiled metal top layer, an insulation core (6–24mm) and an aluminium foil radiant barrier at the bottom. They are ideal for temperature-controlled sheds, poultry farms, agricultural buildings and light commercial structures where a reflective foil interior is acceptable.
Double Skin panels replace the foil bottom layer with a full profiled metal liner sheet (PPGI/GL/PPGL/AL), delivering a clean off-white interior finish, thicker insulation options (up to 50mm), higher structural strength and superior sound reduction. Double Skin is the preferred specification for warehouses, cold storage, food processing plants and chemical industries.
Single Skin METAhybrid® sheets are available with insulation thicknesses of 6mm, 12mm, 19mm and 24mm. Double Skin sheets are available in 19mm, 24mm, 30mm and 50mm insulation thicknesses. Thicker cores deliver lower U-values and superior thermal performance — the 50mm Double Skin panel is specified for cold storage, food processing and energy-efficiency-critical applications where maximum thermal resistance is required.
Yes. METAhybrid® thermal insulated roofing sheets are manufactured from 550 MPa high-tensile steel with a robust profiled top layer that is fully compatible with standard rooftop solar panel mounting systems. The strong profile provides the load-bearing capacity and fixing point integrity required for solar installation without additional structural reinforcement beneath. This makes METAhybrid® an energy-efficient roofing choice that can be further enhanced with on-site solar generation.
Both Single Skin and Double Skin METAhybrid® sheets are available with the following top layer facing materials:
• PPGI — Pre-painted galvanised steel (standard cost-effective option)
• GL — Galvalume (superior corrosion resistance for coastal and industrial environments)
• PPGL — Pre-painted galvalume (colour-coated with enhanced corrosion protection)
• AL — Aluminium (lightweight, corrosion-free for specialist applications)
The choice of facing depends on the environmental exposure, aesthetic requirement and target service life of the project.
Mineral wool (rockwool) core panels achieve Class A2-s1,d0 — the highest fire performance classification under the European reaction-to-fire standard EN 13501-1. This makes them suitable for use in high-risk occupancies, buildings over 18m, public assembly buildings, healthcare facilities and any project where the building regulations or insurer stipulate non-combustible roof construction.
Yes. METAhybrid® insulated panels are constructed from non-toxic and non-carcinogenic insulation materials — meeting occupational health and food-safety environment requirements. The sealed multi-layer panel construction does not provide nesting spaces for insects, birds or rodents, making it the preferred roofing choice for pharmaceutical industries, food processing plants, poultry farms and schools where hygiene standards are paramount.
